120mm Plf Planetary Gear Reduction High Precision Planetary Gearbox 500 Nm

Brand Name : HPS

Model Number : PLF120

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500000 sets per year

Delivery Time : Depends on order quantity

Packaging Details : standard export package

Housing Material : 42Crmo or 45#steel

Material of Shaft : as required

Lubricant : Synthetic Grease

Gear material : 20CrMnTi

Seal ring : HNBR

Ratio : 1093:1

Gearing arrangement : Planetary

Output Torque : 500 N.m

Input speed : ≤3000rpm

Backlash : ≤30 arcmin

Packing : Standard export package

Warranty : 1 year

Contact Now

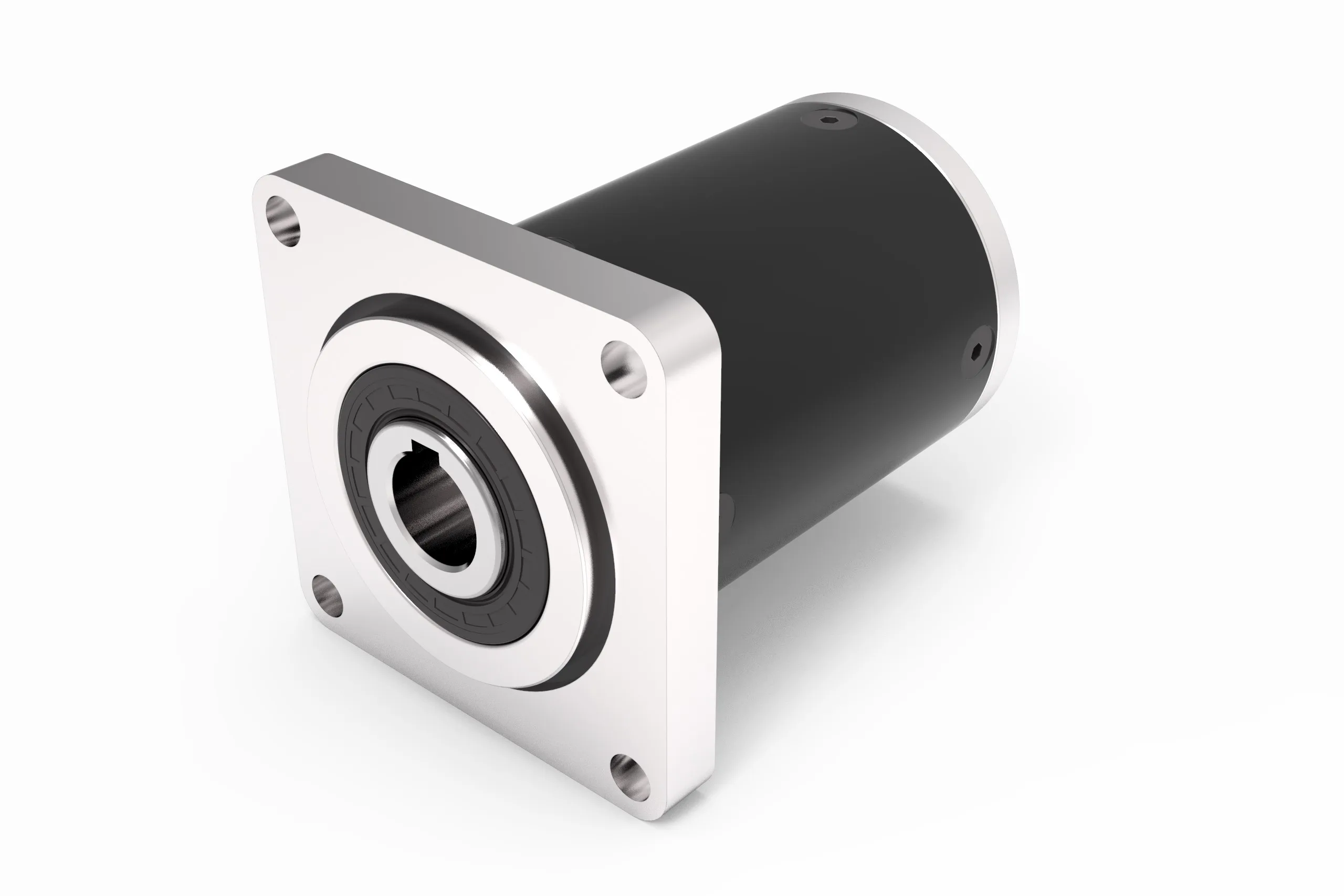

120 Mm Hollow Shaft PLF Series Planetary Gearbox Speed Reduction Gearbox

1. High precision Low noise planetary gearbox

Pure rolling steel teeth, precisely mesh, high concentricity, lower noise ≤55dB

2. Good-looking,Small size,High torque planetary gearbox

Small body, big bearing afford higher radial force and axial force

3. Simple installation planetary gearbox

Body holding loop input shaft, easy,reliable and stable

4. Lower maintenance,Cost-effective planetary gearbox

Free lubrication maintenance, low cost

Competitive Advantages

► ODM &OEM ► Noise Test ► Life Test

► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test

► 20000h long working life ► Impact Test ► Air-tight test

► 100% quality checked and guaranteed ► Salt Spray Test

Planetary gearbox and gear motor solutions, you can count on us. To be the most trustable planetary gearbox and gear motor manufacturer is what we pursue always.

Planetary Gearbox Specifications:

Model	PLF120
Drive series	4
Ratio	1093:1
Rated output torque(N.m)	500
Max torque(N.m)	700
Noise (db)	≤55
Working temperature(℃)	-40~80
